Product Details:
|
| Product Name: | Steam Trap | Tested Pressure Of Body: | 2.4MPa |
|---|---|---|---|
| Degree Of Subcooling: | <= 3 Degree Centigrade | Highest Back Pressure Rate: | 90% |
| Valve Seat, Valve Spool: | Hard Chrome Steel/ Stainless Steel | Normal Pressure: | 1.6MPa |
| High Light: | 982 inverted steam trap,2.4MPa inverted bucket type steam trap,981 inverted bucket type steam trap |
||

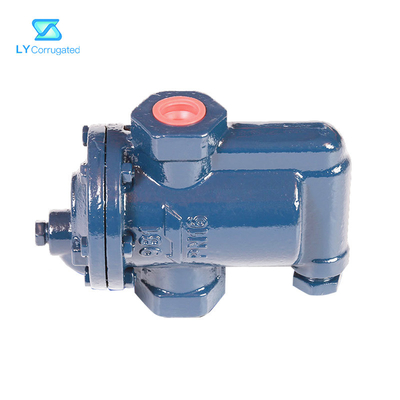

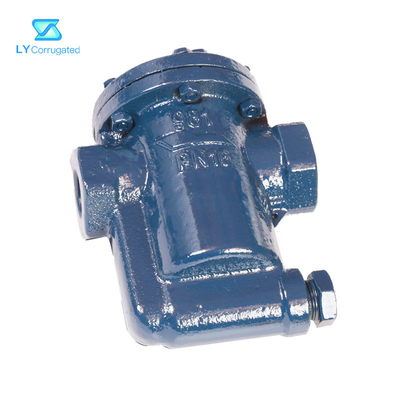

981 982 Inverted Cylinder Steam Trap For Corrugated Cardboard Production Line
|
Normal Pressure
|
1.6MPa
|
Highest Working Temperature
|
230 degree centigrade
|
|
Tested Pressure of Body
|
2.4MPa
|
degree of subcooling
|
<= 3 degree centigrade
|
|
Highest Permission Temperature
|
250 degree centigrade
|
Highest Back Pressure Rate
|
90%
|
|
Valve Body, Valve Deck
|
HT200
|
Inverted Cylinder Lever
|
Stainless Steel
|
|
Valve Seat, Valve Spool
|
Hard Chrome Steel/ Stainless Steel
|
Filter Screen
|
Stainless Steel
|
Steam Trap
Cobalt-chromium-tungsten alloy was used as sealing surface. Long service life seat and spherical valve core
Adopt high quality alloy, wear resistance and corrosion resistance, durable.
Air can effectively prevent steam and air blockage if it does not leak through the drain hole in the inverted cylinder.
Easy to maintain-the internal parts are stainless steel, all installed on the valve seat. Equipped with filter, easy to maintain.
