Product Details:
|
| Suitable For: | High Temperature, High Pressure | Media: | Water,Steam,Oil,Air,Various Liquids |
|---|---|---|---|
| Temperature: | -235-400ºC | Max. Pressure: | 2.5MPa |
| Advantage: | Good Sealing Performance And Long Service Life | ||
| High Light: | Shockproof stainless steel corrugated pipe,Antirust ss corrugated flexible hose pipe,ss corrugated flexible hose pipe |
||
OEM 1/2" 3/4" Stainless Steel Corrugated Hose Metal Flexible Metal Hose
| Metal Hose Specifications | ||||||
| Nominal Diameter | standard Spiral Size | Working Pressure Mpa | Material | L(MM) | ||
| inch | M | S | ||||
| 6 | 1/4' | 14*1.5 | 17 | 2.5 | stalnless steel(306/316) The joint is made ofcopper, carbon steel,stainless steel (the sealing surfacecan be matchedaccording to thecover of the hosesealing surface) |
The length canbe processed according tocustomer requirements |
| 8 | 5/16' | 16*1.5 | 19 | 2.5 | ||
| 10 | 3/8' | 18*1.5 | 24 | 2.5 | ||
| 12 | 1/2' | 20*1.5 | 24 | 1.6 | ||
| 14 | 1/2' | 22.1.5 | 27 | 1.6 | ||
| 15 | 1./2' | 24*1.5 | 30 | 1.6 | ||
| 16 | 5/8' | 27*1.5 | 32 | 1.6 | ||
| 18 | 3/4' | 30*1.5 | 37 | 1.6 | ||
| 20 | 3/4' | 33*2 | 38 | 1.6 | ||
| 25 | 1' | 36*1.5 | 41 | 1.6 | ||
| 36*2 | 41 | 1.6 | ||||
| 39*2 | 45 | 1.6 | ||||
| 30 | 1-1/4' | 45*1.5 | 51 | 1.6 | ||
| 32 | 1-1/4' | 48*2 | 55 | 1.6 | ||
| 40 | 1-1/2' | 58*2 | 68 | 1.6 | ||
| 48 | 2' | 68*2 | 76 | 1.6 | ||
| 50 | 2' | 70*2 | 78 | 1.6 | ||
| 65 | 2-1/2' | 85*2 | 95 | 1.6 | ||

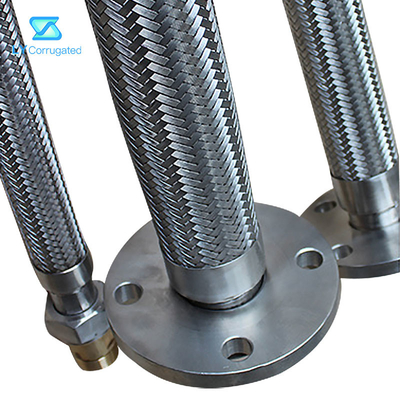

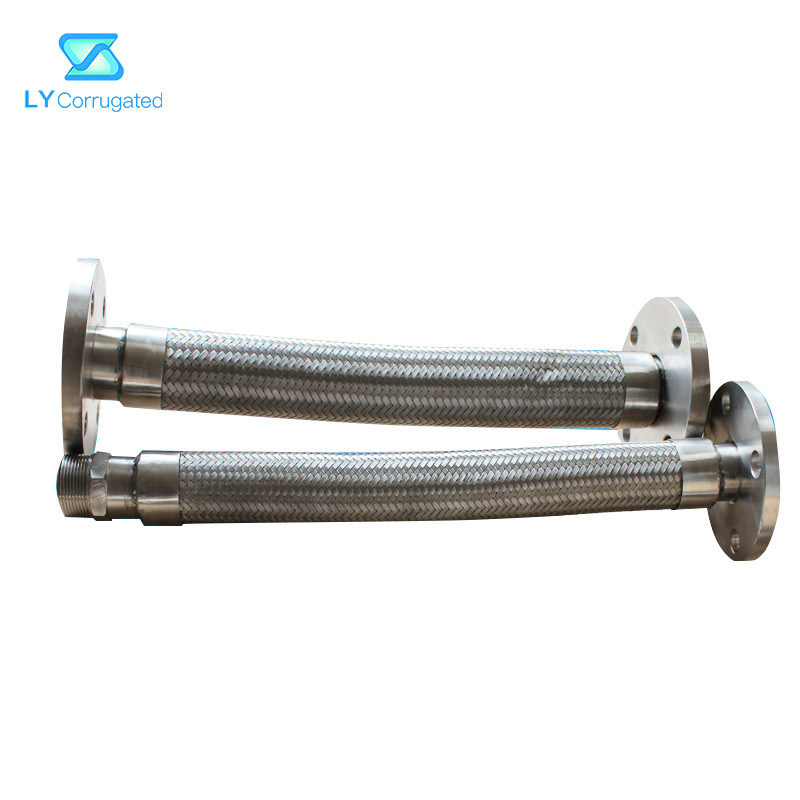

Flexible Metal Hose
1, easy to disassemble
2, shockproof, anti-dislocation, load reduction
3, excellent anti-rust material
4, good sealing performance, long service life
5, the design structure is reasonable, corrosion resistance
