Product Details:
|
| Product: | Corrugator Splicer | Model: | Innov450 |
|---|---|---|---|
| Web Size: | 2500 Mm | Running Speed: | 350 M/min |
| Designed Speed: | 400 M/min | Application: | 7 Ply Corrugated Line |
| Highlight: | Laser Detection Corrugator Splicer,350 m/min Corrugator Splicer,Innov450 automatic corrugated box plant |
||

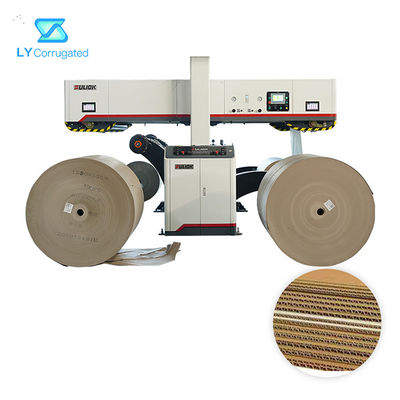

Laser Detection Alignment Corrugator Splicer For 7 Layer Cardboard Line
Advantage of Splicing Machine:
1,Siemens double servo controller and double asynchronous servo motor control.
2,Remaining paper detection (pulling light contact) function, equipped with laser detection diameter.
3,Equipped with a touch screen display, which can diagnose, maintain and control the equipment through the touch screen.
4,Closed loop constant tension control, constant tension output.
5,The success rate of paper splicing is as high as 99.9%
Splicing Speed :(B/C Flute)
| Liner Gsm(G/㎡) | Top Liner(M/Min) | Fluting Liner(M/Min) |
| 70~90 | 280 | 230 |
| 90~110 | 300 | 280 |
| 110~130 | 350 | 300 |
| >130 | 450 | 380 |
