Product Details:
|
| Product: | Corrugator Splicer | Model: | Innov350 |
|---|---|---|---|
| Specification: | 2500 Mm | Working Speed: | 250m/min |
| Splicing Type: | Overlapping | Application: | 2500mm Cardboard Production Line |
| Highlight: | 280m/Min Corrugator Splicer,Innov350 Corrugator Splicer,2500mm cardboard corrugator machine |
||

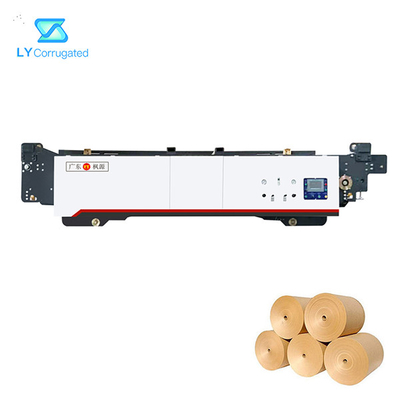

Paper Pulling Motor Corrugator Splicer For 2500mm Corrugated Cardboard Line
Splicing Speed Standard
| Paper Grammage(G/㎡) | Top Liner Speed (M/Min) | Flute Liner Speed (M/Min) |
| 70~90 | 250 | 200 |
| 90~110 | 280 | 220 |
| 110~130 | 300 | 250 |
| >130 | 300 | 250 |
Production Parameter
1,The Machine Frame Is Made Of High Quality Carbonized Steel. With Optimal Design, Good Apprearance And Stable Structure.
2,Adopting High Precision Fully Tension Control By Servo Motor.
3,Good Splicing Performance For Low Paper Grammage.
4,Simple Preparation Work Before Splicing. Quick And Convenient.
Optional Functions
1. Laser Of Edge Alignment To Ensure Two Paper Rolls Are Aligning
2. Automatic Infrared Detection Can Be Added To Measure The Paper Reel Diameter.
3. To Be Synchronized With The Exis Production Line
4. To Be Installed In Back To Back Position, Easy To Operate
5. To Be Equipped With Program So As To Achieve Fully Automatic Closed Loop Braking System
