Product Details:
|
| Model: | 900X500-6N Partition Assemble Machine | Host Belt Speed: | 15-30 M/min |
|---|---|---|---|
| Longitudinal Clapboard Feeding Track Number: | 6 | Horizontal Clapboard Feeding Track Number: | 1-12 |
| Working Speed: | 40-60( Groups / Min ) | Clapboard Thickness: | 1.5~7mm |
| Highlight: | PLC paper carton box making machine,7mm automatic corrugated box making machine,PLC automatic corrugated box making machine |
||

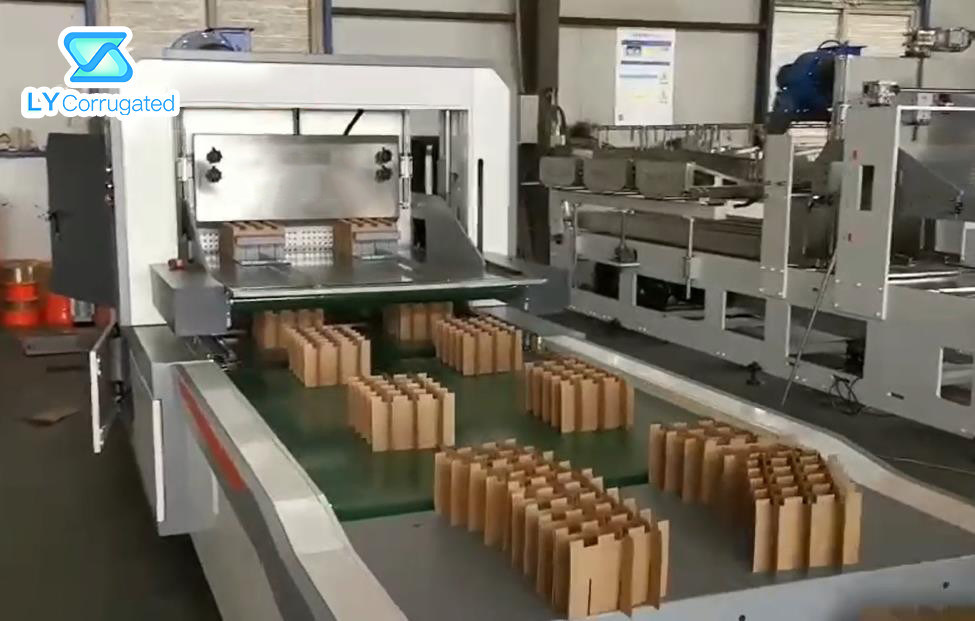

PLC Control Fully Automatic Clapboard Assemble Corrugated Carton Box Machine
Technological parameter:
| Power supply | 380V/50Hz | 3 phases - 4 lines |
| Power | 10 KW | Not including the air compressor |
| Host belt speed | 15-30 m/min | |
| Clapboard combining form | 3*(1~N ) | ln double working station |
| Longitudinal clapboard feeding track number | 6 | |
| Horizontal clapboard feeding track number | 1~12 | |
| Clapboard size | (Length)L=120~500mm | Clapboard thickness 1.5~7mm |
| (Height) H=70-250mm | ||
| (Width)W=120~450mm(double station ) | (Width) W=120~900mm(single station ) | |
| (Lattice spacing)C=50~150mm | ||
| (Lattice spacing) D=30~150mm | ||
| Working speed | 40-60( groups / min ) |
Working speed is connected with clapboard size and clapboard combining form.
|
|
Note : when the width of clapboard is greater than 450mm , the machine just can work in single station . Air compressor or air compression station requirement : 6kgf/cm2 . For the 'special type of clapboard , we can customize the machine as client's wish . |
||
