Product Details:
|
| Product Name: | Conveyor Belt For Cardboard | Application: | Corrugated Line Auto Stacker |
|---|---|---|---|
| Minimum Pulley Diameter (mm): | 30 | Thickness (mm): | 4.5 |
| Tensile Strength (N/mm): | 8 | Specification: | 2000*215*5 |
| Maximum Width (mm): | 3000 | ||
| Highlight: | Green PVC Inclining Conveyor Belt,Corrugated Cardboard Conveyor Belt,Auto Basket Stacker Conveyor Belt |
||

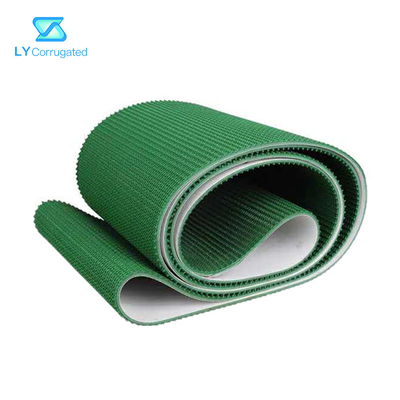

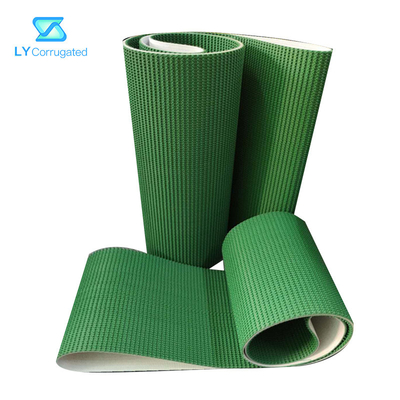

Corrugated Cardboard Green PVC Inclining Conveyor Belt For Auto Basket Stacker
Product Parameter
| Surface color | grass green |
| Material | PVC /fabric |
| Weight〔 kg/mr") | 2.8 |
| Minimum pulley diameter (mm) | 30 |
| Tensile strength (N/mm) | 8 |
| Temperature range (℃) | -15~80 |
| Coating | 2-PLY |
| Thickness (mm) | 4.5 |
| Flame retardant | yes |
| Antistatic | Yes |
| Surface hardness (A) | 60 |
| Maximum width (mm) | 3000 |
Feature Of Conveyor Belt
Characteristics of conveyor surface: wear resistance, antistatic, flame retardant, low noise, climbing transportation
Connection mode: steel buckle joint, round pin buckle joint, butterfly buckle joint
Main features: excellent operation
Performance-low wear resistance, high conductivity and good flexibility
Application scope: corrugated board conveyor, express logistics, ecommerce logistics postal sorting, airport baggage transportation
