Product Details:
|
| Product Name: | Flexo Printer Slotter Die Cutter | Maximum Feed Size: | 1600*3600 |
|---|---|---|---|
| Max. Printing Size (mm): | 1600*3560 | Accuracy: | +-0.5mm |
| Specification: | 5000 KG | Minimum Feed Size: | 200*435 |
| Highlight: | Carton Box Flexo Printer Slotter Machine,Packing Box Flexo Printer Slotter Machine,TUV flexo graphics printing machine |
||

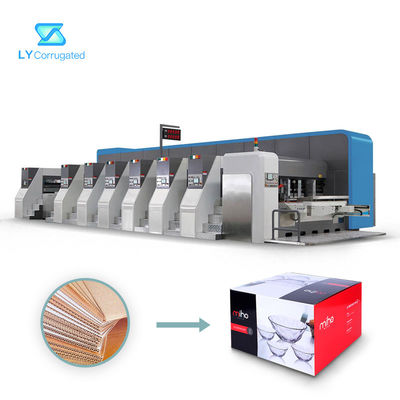

Two Color Flexo Printer For Carton Box Packing Box Corrugated Cardboard
| Model | T-GC618 | T-GC920 | T-GC924 | T-GC1224 | T-GC1228 | T-GC1428 | T-GC1628 | T-GC1632 | T-GC1636 |
| Max. Speed (pcs/min) | 350 | 300 | 300 | 250 | 230 | 220 | 180 | 180 | 160 |
| Max. Feeding Size (mm) | 600×1800 | 900×2000 | 900×2400 | 1200×2400 | 1200×2800 | 1400×2800 | 1600×2800 | 1600×3200 | 1600×3600 |
| Min. Feeding Size(mm) | 200×435 | 270×600 | 270×600 | 320×600 | 320×600 | 365×600 | 450×600 | 450×600 | 450×600 |
| Skip Feeding(mm) | 800×1800 | 1200×2000 | 1200×2400 | 1500×2400 | 1500×2800 | 1700×2800 | 1900×2800 | 1900×3200 | 1900×3600 |
| Max. Printing Size (mm) | 600×1760 | 900×1960 | 900×2360 | 1200×2360 | 1200×2760 | 1400×2760 | 1600×2760 | 1600×3160 | 1600×3560 |
| Min. Slotting(L:mm) | 180×55× 180×55 | 240×65× 240×65 | 240×65× 240×65 | 260×65× 260×65 | 260×65× 260×65 | 260×65× 260×65 | 260×65× 260×65 | 260×65× 260×65 | 260×65× 260×65 |
| Min. Slotting (R: mm) | 110×110× 110×110 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 | 130×130× 130×130 |
| Max. Slotting Depth (mm) | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 400 | 400 |
Flexo Printer
Continuous or jump feed can be used with counters.
The leading edge feeder with electric feeding stroke can adjust and reduce the pressure of the drawing roll.
Original imported SUN Lead Edge Feeder to ensure long-term feeding accuracy and stability.
Multi-row brush and antistatic system to keep the cardboard clean before entering the printer unit to ensure printing quality.
When the unit is not completely closed and locked, the main motor is protected and will not start.
